Technical Specifications
MastNode is built with professional-grade components to ensure reliable AIS data collection, secure communication, and stable operation in real-world maritime environments. The following specifications outline the core technologies and hardware capabilities behind MastNode’s performance.
AIS Receiver
-
True dual-channel AIS reception
-
Frequency bands: 161.975 MHz & 162.025 MHz (simultaneous)
-
Modulation: GMSK, 9,600 bps
-
Channel bandwidth: 25 kHz
-
Receiver sensitivity: ≤ –117 dBm
-
Maximum input level: 0 dBm
GNSS & Timing
-
Integrated GNSS module (GPS)
-
PPS (Pulse Per Second) support for precise time synchronization
-
Supported NMEA sentences: GNGGA, GNRMC, GNVTG

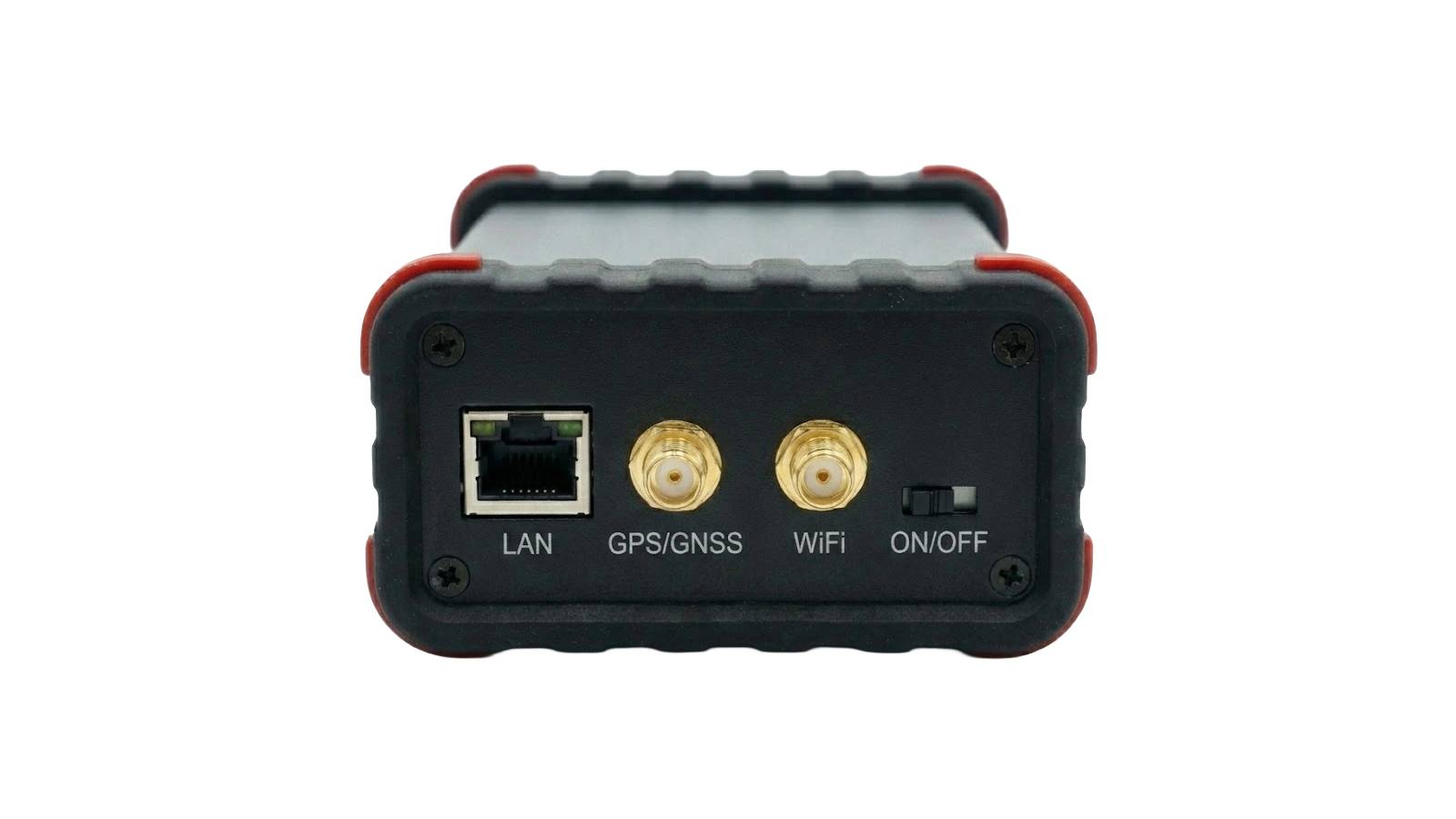

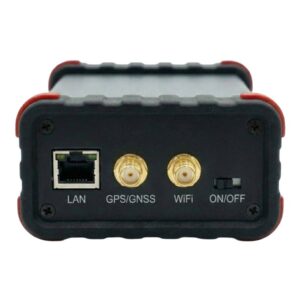

Connectivity & Interfaces
-
Wi-Fi: 2.4 GHz IEEE 802.11 b/g/n
-
Ethernet: 10/100 Mbps RJ45
-
USB interface
-
Network protocols: TCP / UDP
Security
-
Hardware-based cryptographic security
-
Integrated ATECC608 secure element for device identity and data integrity
System
-
Operating system: Linux-based
-
Local data storage via Micro SD card
Power & Environmental
-
Power input: USB-C, 5V / min. 2.5A
-
Operating temperature: –20°C to +65°C
-
Built-in ESD protection: ±16 kV (IEC 61000-4-2)
Physical
-
Dimensions: 121.5 × 89.5 × 44 mm
-
Weight: ~150 g
-
Industrial-grade enclosure with protective corner guards
