Decentralized AIS Infrastructure Node
Industrial-grade, compact, plug-and-play AIS data collection device. Contribute high-quality AIS data to the MastChain network and earn rewards for your participation.
True dual-channel AIS (161.975 / 162.025 MHz simultaneous)
Internal GNSS (GPS + PPS)
Wi-Fi + Ethernet Connectivity
Cryptographic security with ATECC608
About MastNode
MastNode is a compact, industrial-grade AIS infrastructure node designed for decentralized maritime networks. It enables individuals and organizations to collect high-quality AIS data and contribute it securely to the MastChain ecosystem.
Built with true dual-channel AIS reception, MastNode simultaneously receives signals on 161.975 MHz and 162.025 MHz, ensuring reliable and continuous vessel data capture. Its internal GNSS module (GPS + PPS) provides precise positioning and timing, making the data suitable for professional-grade maritime applications.
Pre-orders will open soon.
Why MastNode
Reliable Dual-Channel AIS
Simultaneous reception on both AIS channels ensures continuous, high-accuracy vessel data without signal loss.
Plug-and-Play Deployment
Install and go. MastNode works out of the box with built-in GNSS for precise positioning and timing.
Flexible Connectivity
Wi-Fi, Ethernet, USB, and TCP/UDP support make MastNode easy to integrate into any network setup.
Built-In Security
Hardware-level cryptography protects device identity and data integrity in decentralized networks.
Technical Specifications
MastNode is built with professional-grade components to ensure reliable AIS data collection, secure communication, and stable operation in real-world maritime environments. The following specifications outline the core technologies and hardware capabilities behind MastNode’s performance.
AIS Receiver
-
True dual-channel AIS reception
-
Frequency bands: 161.975 MHz & 162.025 MHz (simultaneous)
-
Modulation: GMSK, 9,600 bps
-
Channel bandwidth: 25 kHz
-
Receiver sensitivity: ≤ –117 dBm
-
Maximum input level: 0 dBm
GNSS & Timing
-
Integrated GNSS module (GPS)
-
PPS (Pulse Per Second) support for precise time synchronization
-
Supported NMEA sentences: GNGGA, GNRMC, GNVTG
Connectivity & Interfaces
-
Wi-Fi: 2.4 GHz IEEE 802.11 b/g/n
-
Ethernet: 10/100 Mbps RJ45
-
USB interface
-
Network protocols: TCP / UDP
Security
-
Hardware-based cryptographic security
-
Integrated ATECC608 secure element for device identity and data integrity
System
-
Operating system: Linux-based
-
Local data storage via Micro SD card
Power & Environmental
-
Power input: USB-C, 5V / min. 2.5A
-
Operating temperature: –20°C to +65°C
-
Built-in ESD protection: ±16 kV (IEC 61000-4-2)
Physical
-
Dimensions: 121.5 × 89.5 × 44 mm
-
Weight: ~150 g
-
Industrial-grade enclosure with protective corner guards

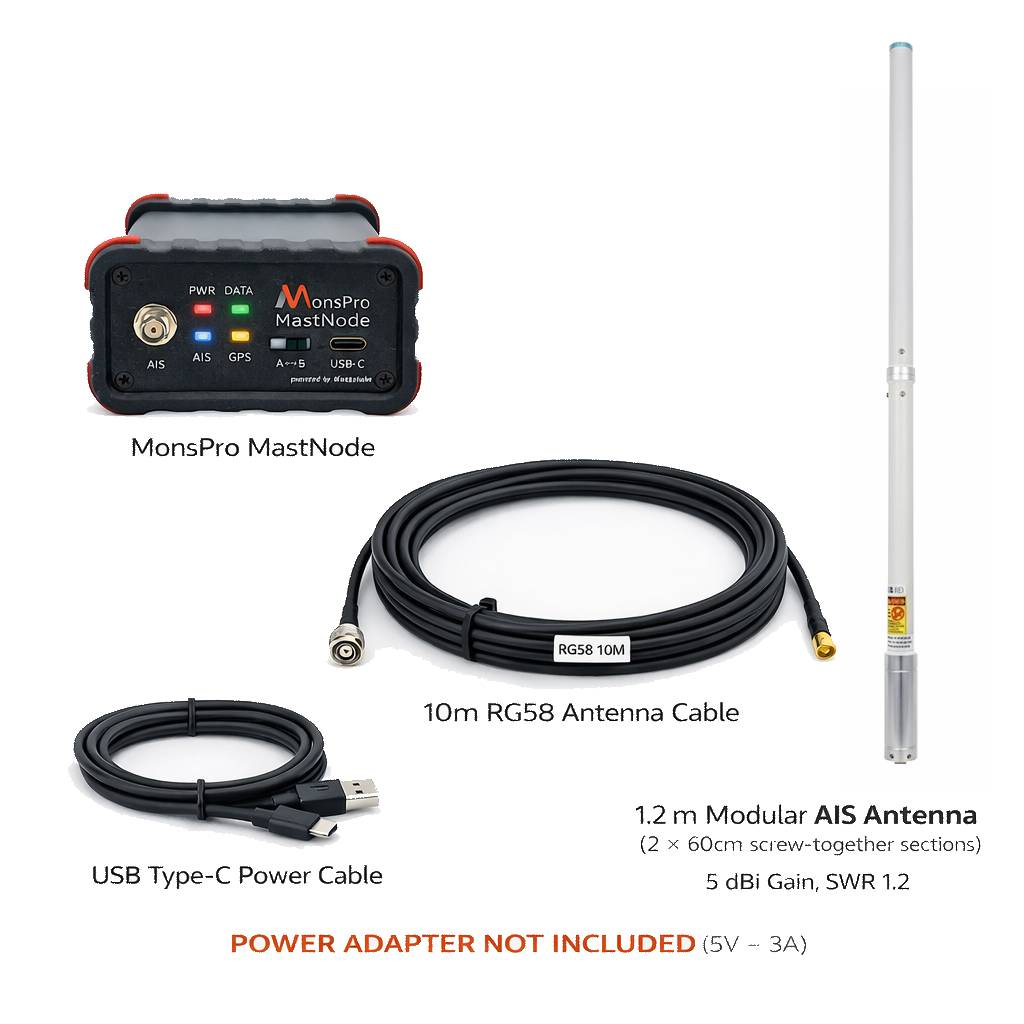

What’s in the Box
MastNode is delivered with everything you need to begin deployment quickly and reliably. Each package includes the core hardware and essential components required for stable operation and seamless integration into maritime AIS data infrastructure.
MastNode Device
The industrial-grade AIS infrastructure node, engineered for continuous data reception, secure processing, and network contribution.
Antenna
A 1.2 m AIS antenna featuring a modular design with two 60 cm screw-together sections for easy transport and installation. Provides 5 dBi gain for reliable AIS reception and transmission, with a low SWR of 1.2 to ensure efficient signal performance.
Cable
A 10-meter RG58 antenna cable designed for stable signal transmission between the antenna and the device. Durable construction ensures consistent performance in marine and outdoor environments.
USB Type-C Power Cable
A USB Type-C power cable for supplying power to the device. Supports stable power delivery when connected to a compatible power source.

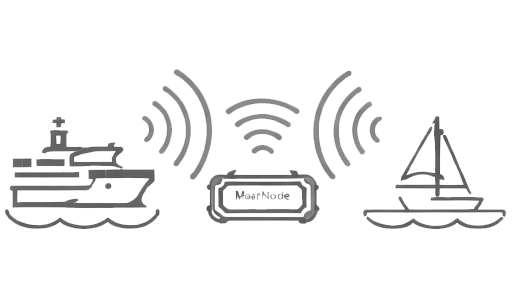

How it Works
AIS signals are received
Vessels continuously broadcast AIS messages containing position, movement, and identification data. MastNode receives these signals simultaneously on both AIS channels, ensuring reliable and complete data capture.
Data is processed and timestamped
Incoming AIS data is processed locally on the device. Integrated GNSS with PPS provides accurate positioning and precise time synchronization for every data packet.
Secure transmission to the network
Processed data is securely transmitted via Wi-Fi or Ethernet using standard network protocols. Hardware-based cryptography ensures data integrity and trusted device identity.
Contribution to the decentralized network
MastNode delivers validated AIS data to the MastChain ecosystem, where it becomes part of a decentralized maritime data infrastructure and supports real-time and analytical use cases.
Support
Documentation
FAQ
Find answers to the most common questions about MastNode, including installation, connectivity, security, and usage. This section is designed to help you quickly understand how MastNode works and how to get the most out of your deployment.
What is MastNode?
MastNode is an industrial-grade AIS infrastructure device that collects vessel AIS data and securely contributes it to a decentralized maritime data network.
Who can use MastNode?
MastNode can be used by individuals, companies, port operators, maritime service providers, and infrastructure partners looking to deploy reliable AIS data collection points.
Does MastNode transmit AIS signals?
No. MastNode is a receive-only device. It listens to AIS broadcasts from vessels and does not transmit any AIS signals.
How is AIS data collected?
MastNode receives AIS messages broadcast by vessels on standard AIS channels and processes the data locally before securely forwarding it to the network.
Is an external antenna required?
Yes. MastNode is designed to work with an external AIS antenna suitable for the installation environment. Antenna selection and placement directly affect reception performance.
How is the device connected to the internet?
MastNode supports Wi-Fi and Ethernet connectivity. You can choose the option that best fits your deployment environment.
How secure is the data?
MastNode uses hardware-based cryptographic security to ensure secure device identity and data integrity during transmission.
How is MastNode powered?
The device is powered via USB-C with a 5V power supply. A stable power source is recommended for continuous operation.
Where can I find installation and configuration guides?
Detailed installation and configuration instructions are available in the official documentation, which can be downloaded from the Documentation section of the website.
